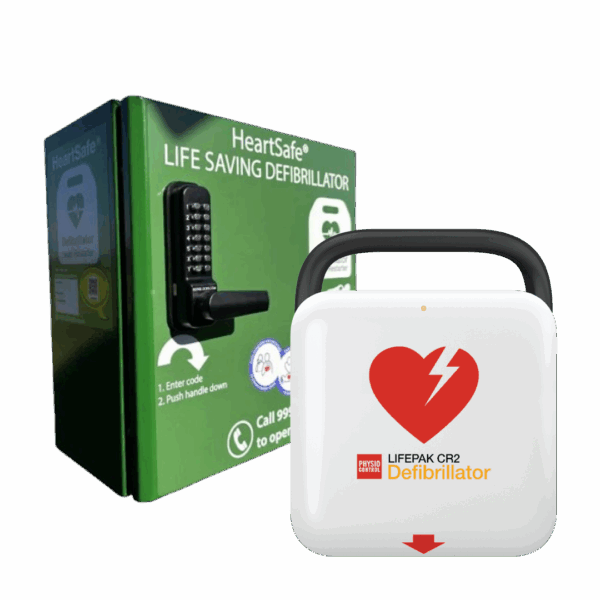

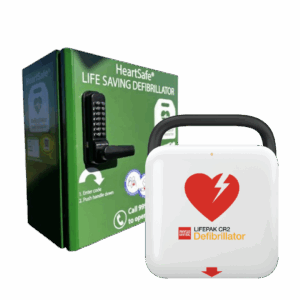

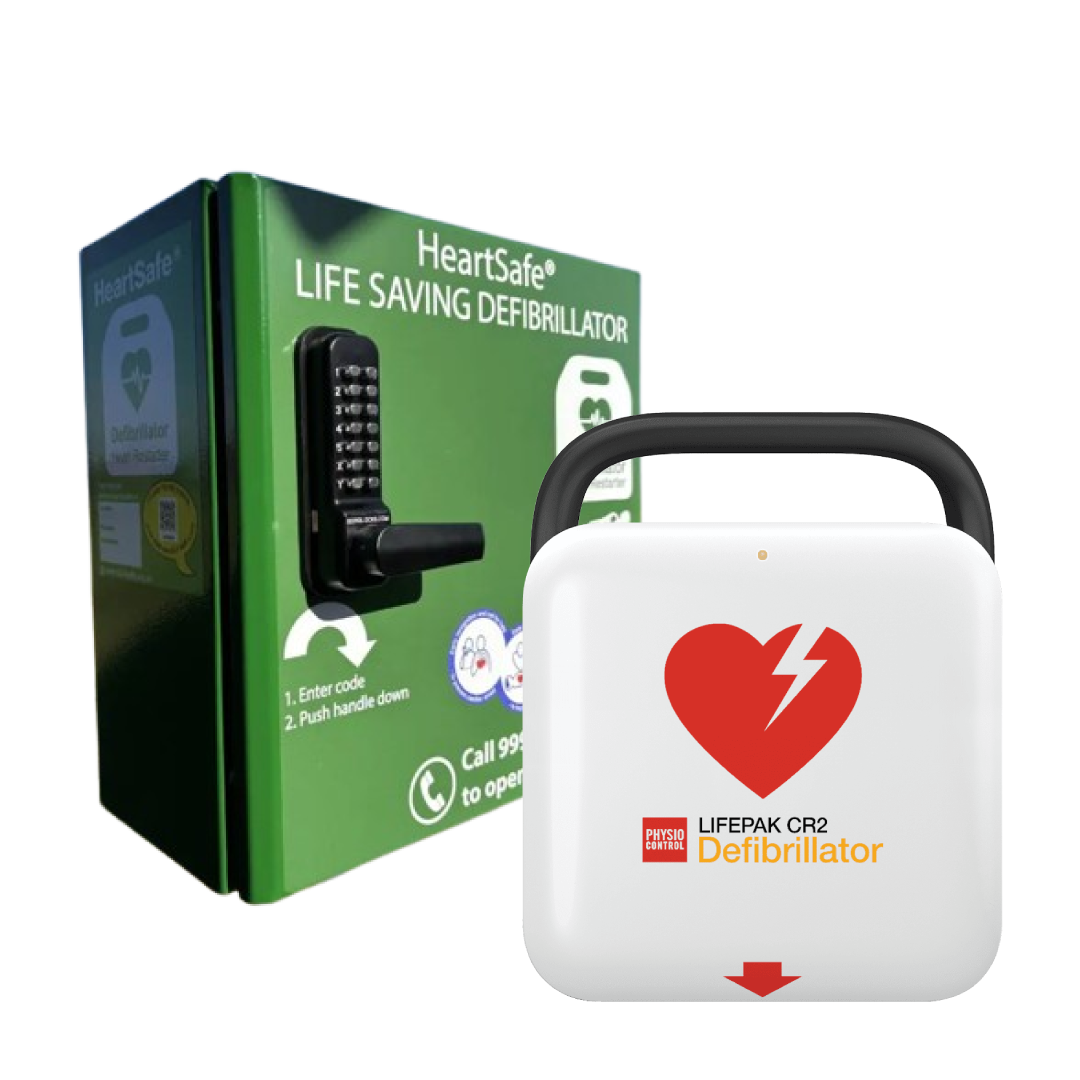

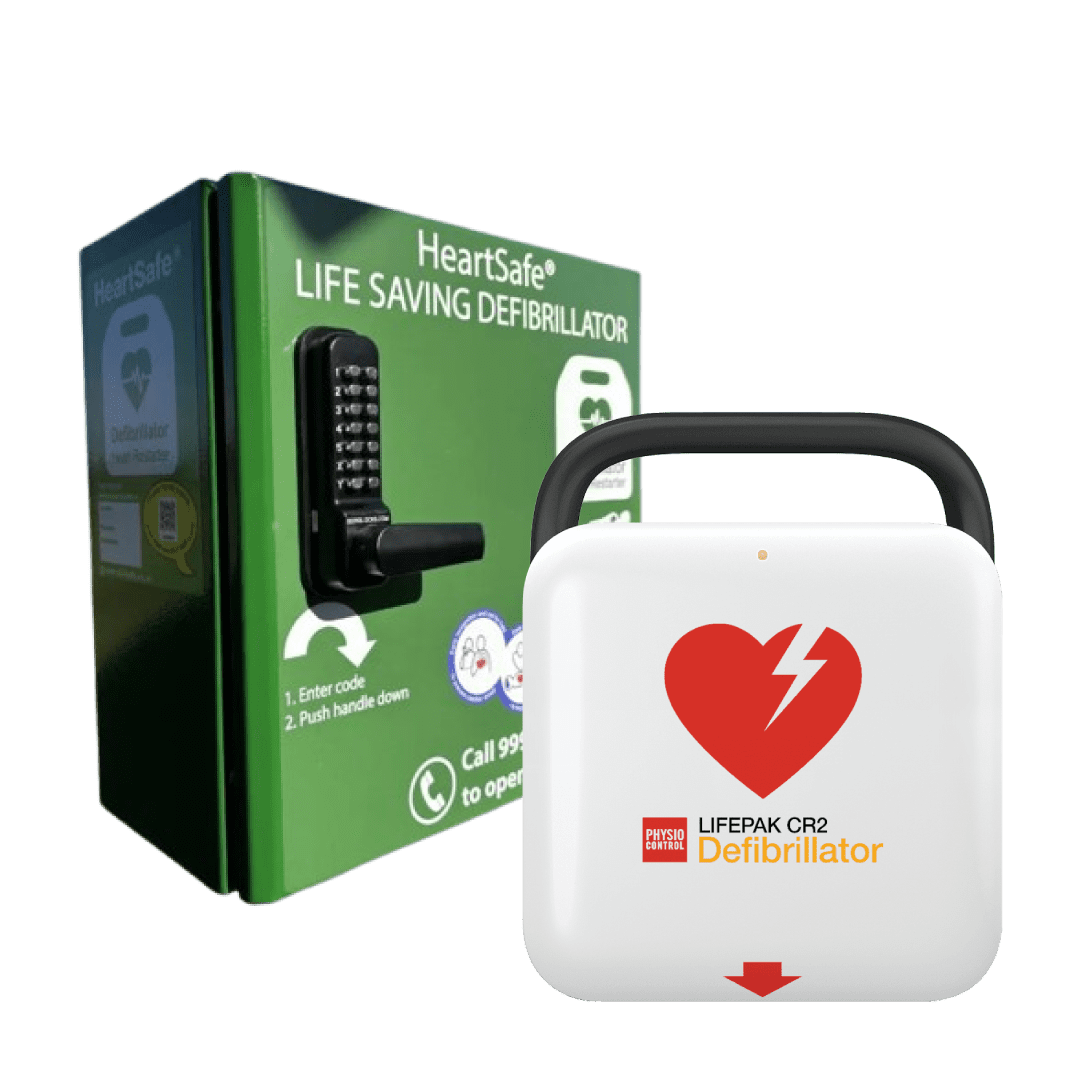

HeartSafe® External Defibrillator Package including Cabinet and LifePak CR2 Defibrillator
Price with your selected options:
From £2,295.00 + VAT
Package Contents
- Your choice of Defibrillator
- The green HeartSafe MK2 steel external defibrillator cabinet with a 10-year warranty.
- Metal wall sign
- Green LED bulkhead light
- Information plaque
- Resuscitation kit
- Directional labels
- HeartSafe cabinets are manufactured in the UK.
- Delivery 7 days from order
Overview
Product Information

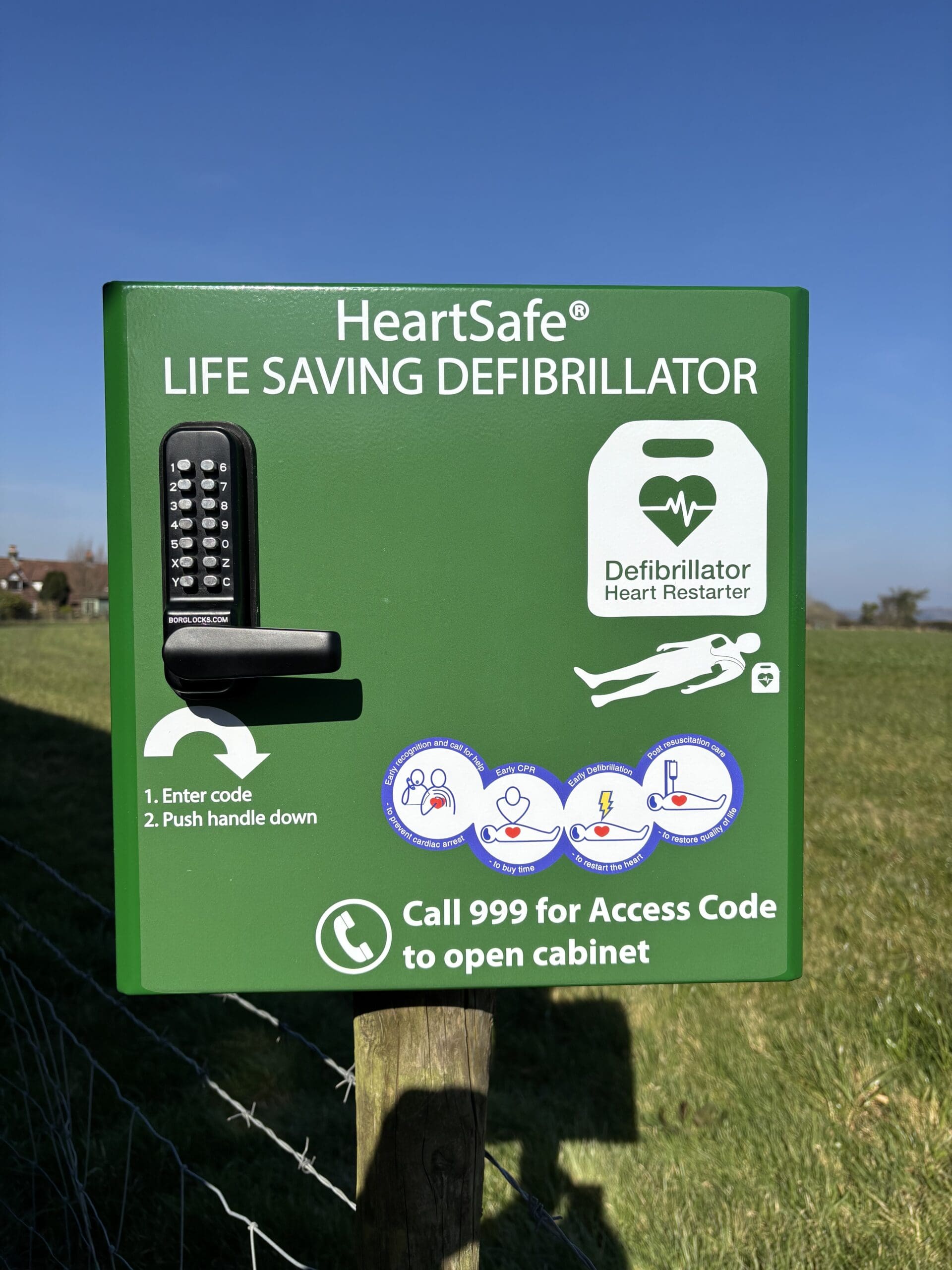

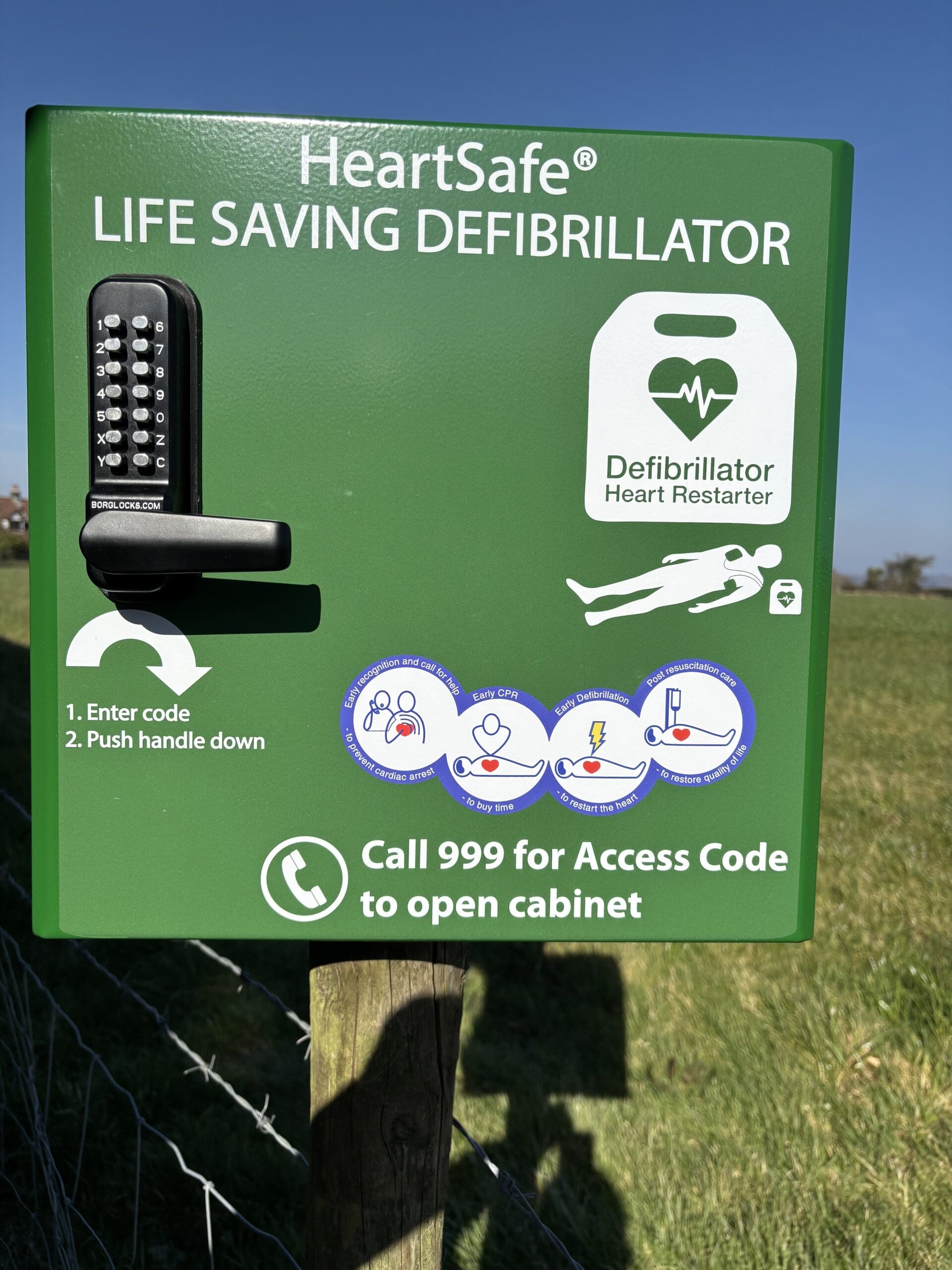

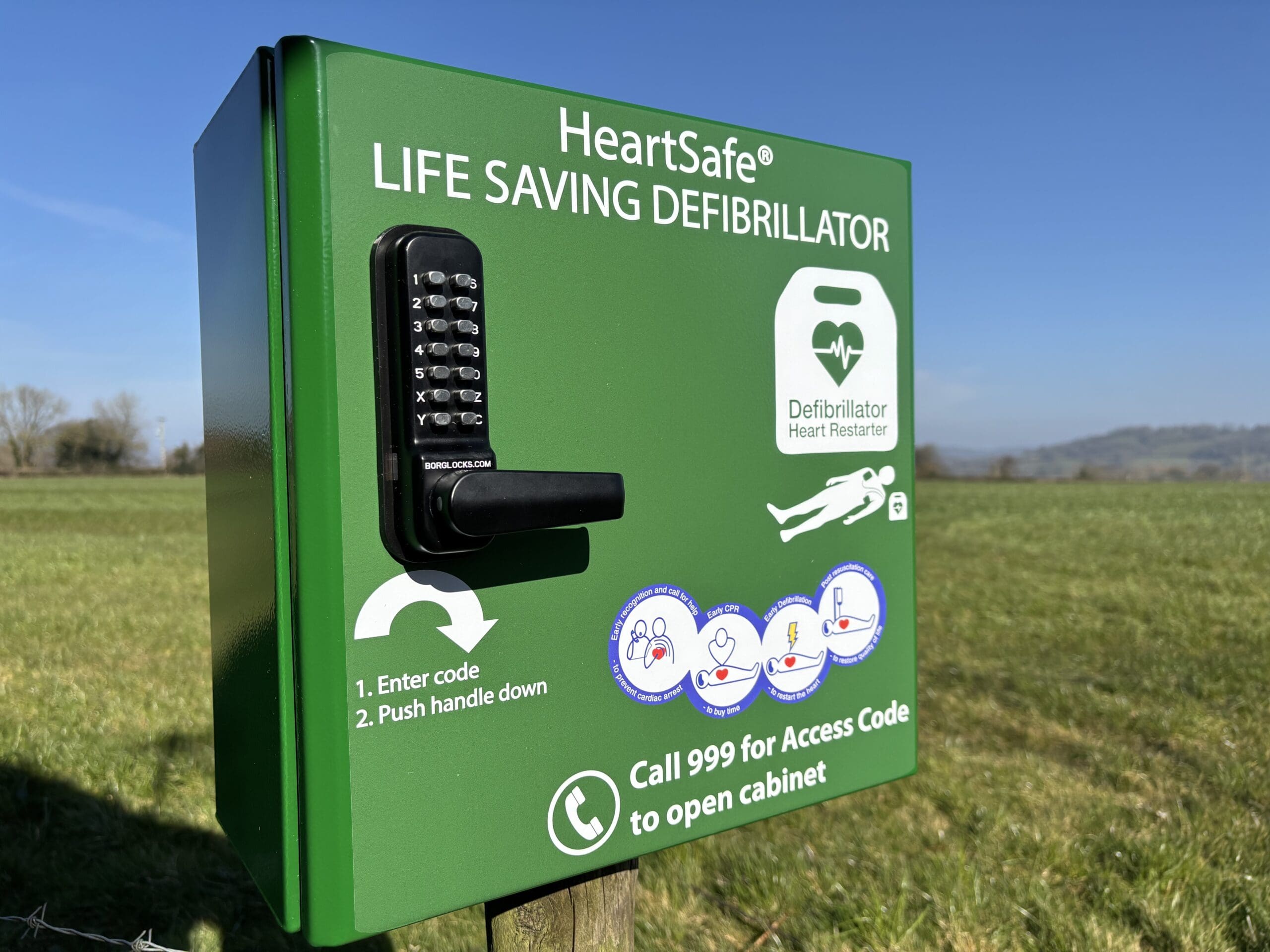

HeartSafe Mk2 Cabinet Specification
- Dimensions: 400 x 400 x 200mm (HxWxD)
- IP66-rated (water and dust ingress)
- IK10 Impact Rating impact (highest achievable)
Material:
- 2mm mild steel, powder coated in any colour required (although yellow is standard) – our unique paint application process guarantees the paint will not peel in time, unlike a lot of cabinets on the market
Heating:
- 50W convection heater controlled by a thermostat monitoring the temperature of the cabinet, ensuring the defibrillator remains in an environmentally stable condition at all times and is always ready to use
Lighting:
- USB rechargeable LED strip light activated on the opening of the door, providing illumination inside the cabinet when required
Lock:
- A marine-grade lock, salt-spray tested for 1000 hours, provides an alpha-numerical code to open the latch lock through a full-sized handle. To lock the cabinet, the door must be pushed shut. A non-locking cabinet, which has a simple turn handle to open, is also available. A key-lock version is also available.
Warranty:
- We are so confident in our cabinets that we offer a 10-year warranty on all cabinets sold, a 3-year warranty on the internal electrical system, and a lifetime warranty offered by the lock manufacturer (terms and conditions apply). The 10-year warranty is applicable for cabinets purchased after 01/01/2019 and is subject to our Terms and Conditions.
Application:
- Our cabinets are compatible with all makes and models of public defibrillators.
Smart Device
It is a connected device, and communicates by wifi via an online software portal with all parties regarding battery and pad life, device use, any software/hardware issues, and can be interrogated remotely to access resus data to be able to send that on to a hospital as/when required.
Built in Child Mode
A simple push of a button converts the defib to a child suitable energy level; this removes the need for managing and buying 2 separate pads, and makes it much easier for the user to operate in a highly stressful environment.
CPR insight
This allows the rescuer to deliver continuous CPR while the defib is analysing – any other defib requires the rescuer to stop CPR every 2 minutes, for up to 30 seconds… this unique system used by the CR2 undoubtedly increases survival rates, and improves patient outcome following survival.
LIFEPAK CR2 Defibrillator
Connected. Ready.
In a cardiac emergency, the LIFEPAK CR2 defibrillator connects everything and everyone involved in the response – reducing delays in treatment and improving care across the lifesaving system.
Who will be saved next?
When you choose the LIFEPAK CR2 defibrillator, you’re choosing a connected solution that empowers bystanders to help save a life – all while backed by innovative technology that allows continuous CPR and streamlines communication across the system of care.
With a design influenced by user feedback, the LIFEPAK CR2 is at the heart of a complete AED response system.
Product Highlights
LIFEPAK CR2 Defibrillator
The LIFEPAK CR2 is a powerful, easy-to-use AED. Advanced technology including cprINSIGHT, Wi-Fi and cellular connectivity and continuous self-monitoring ensure devices and responders are always prepared to deliver swift, lifesaving treatment.
How To Use A LifePak CR2 – Semi-automatic
How To Use A LifePak CR2 – Fully Automatic
Self-monitoring AED program
Battery not charged? AED not where it’s supposed to be? The LIFELINKcentral AED program manager monitors each LIFEPAK CR2 connected to a cellular or Wi-Fi network and alerts you to anything that may affect device readiness—all automatically. This greatly reduces the effort and expense of managing your AED program, while increasing your program’s readiness and effectiveness.
Continuous CPR
More CPR means improved blood circulation and better odds of survival. The LIFEPAK CR2 allows chest compressions during ECG rhythm analysis, reducing pauses between CPR and defibrillation. Once CPR begins, cprINSIGHT technology – unique to only LIFEPAK CR2 – automatically analyzes and detects if a shock is needed. This significantly reduces pauses in chest compressions, even eliminating pauses if the rhythm is determined to be non-shockable.
Connected to responders
The right information at the right time can make a lifesaving difference. With the LIFEPAK CR2, Wi-Fi connectivity gives emergency responders a complete picture of each cardiac arrest event. So even before they arrive, emergency professionals are better prepared and understand the details of the shocks given, see the patient’s actual ECG, and more.
Continuity of care
The LIFEPAK CR2 streamlines continuity of care by seamlessly sending all AED information to the LIFENET System, helping to speed the transition to the next level of care with emergency services and the hospital.

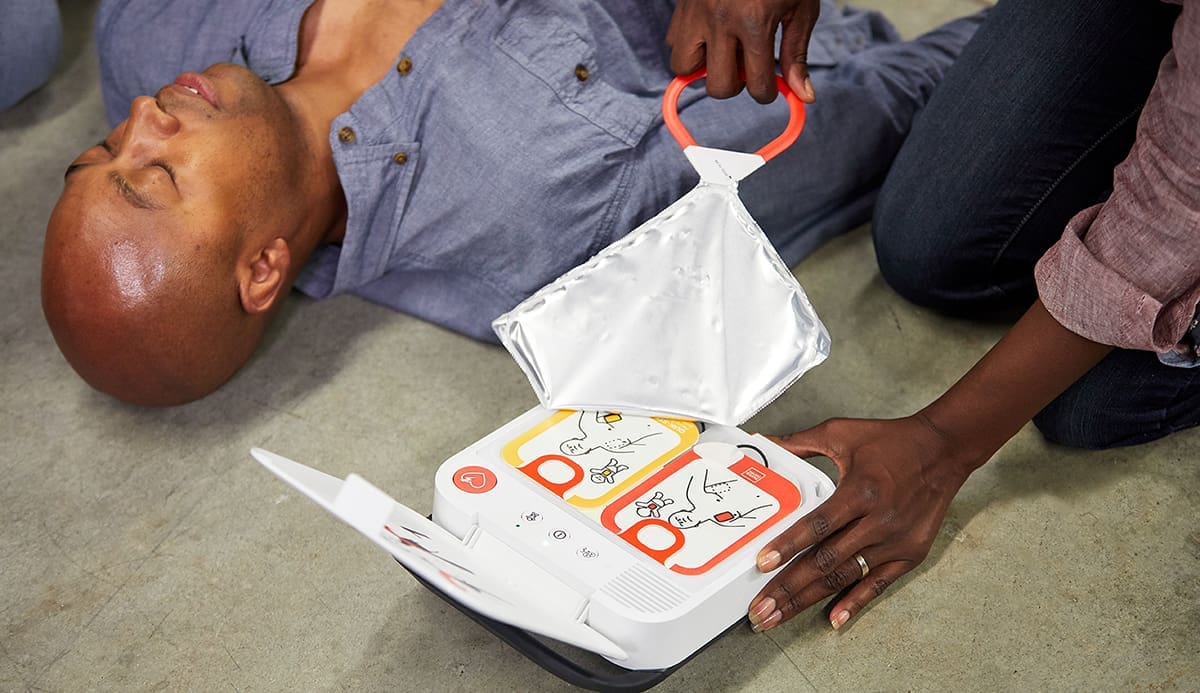

Simple operation
The LIFEPAK CR2 uses simple graphics, audible instructions and automated features to help users remain focused. A child mode button provides reduced energy and CPR guidance specifically for children.
Resources & Downloads
FAQs About Out Cabinets
Should you be approached, our strong advice is to never purchase a second-hand defibrillator unless you have the original certificate of purchase and full history of its use and previous owner’s details, which can then be verified and has not been reported on a lost or stolen list.
Sadly there have recently been reported thefts of AEDs from unlocked and locked cabinets and it can only be assumed that these despicable people who show no regard or value of other people’s lives believe a stolen device has some monetary value.
A second-hand defibrillator (AED) has NO monetary value. Each defibrillator has a serial number and can always be traced. AED’s need constant daily/weekly checking and monitoring – without such monitored governance they may not operate correctly or at all if required to be used at the time of an emergency.
If anyone approaches you selling or advertising an AED – treat the offer with great caution – you may be wasting your money. More importantly, putting a life at risk. If you can, report it to your local police or ambulance service or AED Locator on 01275 332323 or post@aedlocator.co.uk.
We are providing you with this information to protect you and others and to ensure everything possible is done to avoid the risk of an unnecessary death. If we can kill the demand for any stolen defibrillators, then we will be saving lives.
REMEMBER.. if it is cheap and looks a bargain then it is most likely STOLEN. The AED’s serial number is logged, it can be traced and may not work when you require it.
The HeartSafe® approach to planning a public access defibrillator in your community, place of work or enjoyment.
You have heard and read about the importance of using a defibrillator when a person has suffered a sudden cardiac arrest.
You want to help your community, friends, neighbours, business associates. Each situation and setting may vary. It is important you choose the right defibrillator and contain it in a safe, easy accessible, very visible location. Over the last 12 years we have assisted many thousands of locations to become HeartSafe®. There is probably not a type of location we have not placed a defibrillator within a cabinet, indoors or outdoors, on the top of a mountain or on the shoreline of the coasts around the UK. Hamlets, Villages, Towns, Cities, Schools, Pubs, Supermarkets, Village Halls, Sports Centres, even mobile vehicles have fitted HeartSafe® defibrillators.
You may have a plan of action in mind and we suggest a phone call/discussion with our trained support team to help put you on the right track. It may take only a few minutes of your time but a lot will be learnt and hopefully it will shortcut the overall time it takes to become a HeartSafe® community. Contact Us.
Click here to view HeartSafe® draft defibrillator Policy Plan.
Each stainless steel HeartSafe® cabinet is constructed by hand in the UK by a traditional engineering company who are proud of being part of a team promoting the early use of a defibrillator. Each cabinet has bespoke wording along with essential information that assists the Ambulance Services and the public who require 24 hour access to obtain the defibrillator in an emergency. A wide range of accessories including signs, directional labels, training aids, videos and accompanying literature are part of the cabinet package. individual specifications vary depending upon customers requirements.
Click here to view leaflet.
- HeartSine samaritan® PAD 350P/360P/500P AED,
- HeartSafe® G3 External non-beacon/beacon light cabinet,
- Small wall sign,
- Information plaque,
- Resuscitation kit,
- Directional labels,
- USB stick instructional video,
- Certificated online web based CPR training licence,
- Onsite training – awareness session by HeartSafe®. Normally within 3 months of site becoming active.
For over 12 years, all cabinets supplied with green bulkhead light or beacon light.
Click here to see example cabinets.
It is important for the community to get to know where their defibrillator is at all times of the day and night. For 12 years we have included and maintained the belief that having a green coloured medical light above the cabinet reassures the public. Everything you can do to allow the person obtaining a defibrillator to find it quickly helps save precious minutes. We recommend you go the extra mile when installing a cabinet and making it aware to everyone at all hours.
It is often requested that cabinets have a means of security and our cabinets are constructed with futureproof locking methods. The customer can choose to have a 4-digit digital lock with sensor light above. The lock can be fitted to be completely unlocked when required and used simply as a knob to turn to open to access the defibrillator.
Customers can decide at any time to make their cabinets completely unlocked at all times and follow the British Heart Foundations/Ambulance Trusts preferred unlocked cabinet recommendations. We leave the choice to the customer but make it easy for them to change at any time in the future without the need of reinvesting in another new cabinet.
External cabinets for public access use require a temperature controlled environment to maintain and ensure the defibrillator is immediately operational when required. HeartSafe® cabinets have been tested to -40 degrees Celsius external temperature. The internal temperature still remaining above 3 degrees Celsius.
HeartSafe® cabinets sited around the UK are constantly monitored by an internal monitoring system ensuring cabinets function correctly. The cabinets are also insulated. In the last 12 years, HeartSafe® have not experienced any problems with defibrillators not functioning correctly due to temperature.
Click to view cabinet heater.
HeartSafe® try hard to make the installation process simple and provide an installation manual/full size wall template. We are able to discuss with your installer who normally is a local electrician who will then provide you with a certificate of electrical compliance for making the connection of the cabinet to a 3 Amp fused spur. Once an order is placed and the process underway, we can provide your electrician or handyman with the technical information required. It is recommended you discuss the siting of the location with HeartSafe® in case a timber backing plate is required on an uneven surface.
